Automatic line for longitudinal/transverse cutting of coiled steel

1 prodol poper rezki

The line is intended for longitudinal and transversal dissolution of rolled galvanized steel of different thickness, set of the line and technical features are variable and are set according to every customer's requests and needs. The technical features of the line are set in the technical assignment..



Set:



  •  Decoiler – 1 pc
  •  Straightening tool – 1 pc
  •  Roller shears– 1 pc
  •  Guillotine shears – 1 pc
  •  Pulling shafts– 2 pc
  •  Receiving stacking table – 2 pc
  •  Tightening tool– 1 pc
  •  Coiler – 1 pc
  •  Unloading carriage – 1 pc
  •  Loading carriage – 1 pc
  •  Control cabinet – 1 pc



Parameter



Parameter or size name Size or parametr
1 Treated material Galvanized sheet steel from continuous lines in accordance with State Standart 14918, coil rolled sheet material with protective decorative paint-and-lacquer coating in accordance with State Standart 30246-94 (Application: cold shape forming)
2 Thickness of treated material 0,5-1,5 / 0,5-2,5 / 0,5-3,0 mm
3 Minimum width of the strip 25-80 mm
4 Speed of cutting 20-60 running meter/min
5 Accuracy of cutting into strips ± 0,2 mm
6 Accuracy of cutting into sheets ± 5 mm
7 Maximum amount of cuts 8-12 (25) pcs
8 Maximum length of the sheets received by the receiving stacking table 3000 mm
9 Type of the decoiler Stand electric, completed by a frequency converter
10 Lifting capacity of the decoiler 8000/ 10000/ 15000 kg
11 Type of the coiler Cantilevered electric, completed by a frequency converter
12 Lifting capacity of the coiler 8000/ 10000/ 15000 kg
13 Operation mode Semiautomatic machine
14 Type of the unloading carriage Hydraulic
15 Lifting capacity of the unloading carriage 8000/ 10000/ 15000 kg
16 Control cabinet Secures automatic work of the line after loading the material into line
17 Maintenance personnel 2 persons
18 Overall dimensions of the line 15000x4300x2100 mm
19 Fixed power (capacity) of the line 15-50 kW
20 Weight of the line 12000 kg

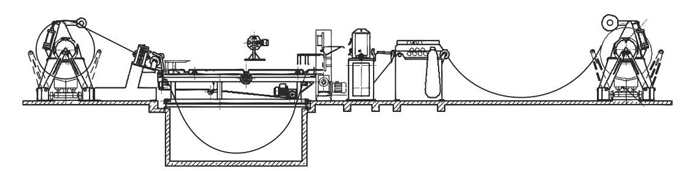

Scheme



 sh line prodol poper rezci
