Universal line for producing screed strip (spackling angle)

1 shak ugol

The line is intended for profiling of spackling and screeding profiles of different types from thin-sheet of galvanized steel 0,4-0,6 mm of thickness and also aluminum of 0,3-0,5 mm. The excellence of final products is ensured with automatic control system and monitoring of master schedule exactitude.



Set:



  •  Decoiler – 1 pc
  •  Stamping press – 1 pc
  •  Roll forming machine – 1 pc
  •  Cutting off device – 1 pc
  •  Receiving stacking table – 2 pc
  •  Control cabinet – 1 pc



Parameter



Parameter or size name Size or parametr
Screed strip Spackling angle
1 Treated material Galvanized sheet steel from continuous lines in accordance with State Standart 14918 (Application: cold shape forming), aluminum
2 Thickness of treated material 0,4-0,6 mm 0,3-0,5 mm
3 Breadth / width of the work part 30; 38 mm 42 mm
4 Speed of profiling 15 running meter/minute
5 Cutting accuracy ± 5 mm
6 Type of roll forming machine Console
7 Type of the cutting off device Pneumatic, fixed
8 Type of decoiler Cantilevered, driven
9 Lifting capacity of decoiler 500 kg
10 Type of stamping press Electromechanical
11 Operation mode Semiautomatic machine
12 Drive Electromechanical, worm gear motor
13 Feeding Chain
14 Maximum length of the sheets received by the receiving stacking table 4000 mm
15 Control cabinet Secures automatic work of the line after loading the material in the shape-forming mill; equipped with frequency converter
16 Maintenance personnel 2 persons
17 Overall dimensions of the line 13650х800х1400 mm
18 Fixed power (capacity) of the line 3,7 kW
19 Weight of the line 1500 kg

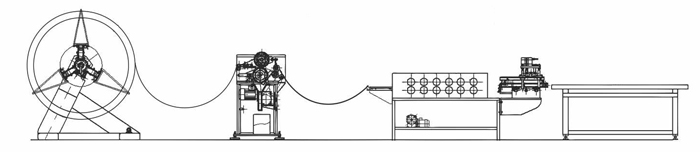

Scheme
