Line for half-round gutter production

1 krugl gelob 1



Equipment is intended for production of a half-round gutter from thin-sheet galvanized steel 0,5-0,6 mm of thickness with plastisol or pural coatings. The management of a line is carried out on-line from operating console, which opportunities allow smoothly adjusting rolling speed, amount and length of produced profiles, control cabinet is set with frequency converter.



Set:



  •  Decoiler – 1 pc
  •  Roll forming machine – 1 pc
  •  Cutting off device – 1 pc
  •  Receiving stacking table – 2 pc
  •  Control cabinet – 1 pc



Parameter



Parameter or size name Size or parametr
1 Treated material Galvanized sheet steel from continuous lines in accordance with State Standart 14918, coil rolled sheet material with protective decorative paint-and-lacquer coating in accordance with State Standart 30246-94 (steel model 08 PS ГОСТ 9045-80)
2 Thickness of treated material 0,5-0,6 mm
3 Breadth / width of the work part 250 mm
4 Speed of profiling 15 running meter/minute
5 Cutting accuracy ± 1 mm/1000 mm
6 Type of decoiler Cantilevered, electric
7 Lifting capacity of decoiler 2000 kg
8 Operation mode Semiautomatic machine
9 Drive unit Electromechanical, worm gear motor
10 Feeding Chain
11 Control cabinet Secures automatic work of the line after loading the material in the shape-forming mill; equipped with frequency converter
12 Maintenance personnel 1-2 persons
13 Overall dimensions of the line 12500x1200x1800 mm
14 Fixed power (capacity) of the line 6,6  kW
15 Weight of the line 4500 kg



Scheme



 sh polucrug geloba



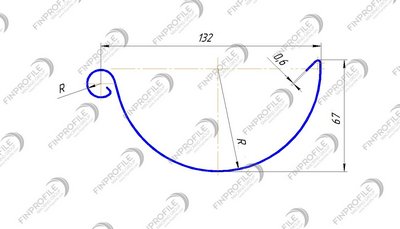

Sketch
