Line for metal tiling production
|
|
The line is intended for production of metal tile “Monterrey” with wave height of 24 mm from a sheet of galvanized steel 0,5-0,6 mm of thickness and metal with varnish-paint decorative guarding cover. The excellence of final products is ensured with automatic control system and monitoring of master schedule exactitude. |
Set:
- Decoiler – 1 pc
- Roll forming machine – 1 pc
- Stamping press – 1 pc
- Guillotine shears – 1 pc
- Hydraulic station– 1 pc
- Receiving roller table – 1 pc
- Control cabinet – 1 pc
Parameter
| № | Parameter or size name | Size or parametr |
| 1 | Treated material | Galvanized sheet steel from continuous lines in accordance with State Standart 14918, coil rolled sheet material with protective decorative paint-and-lacquer coating in accordance with State Standart 30246-94 (Application: cold shape forming) |
| 2 | Thickness of treated material | 0,5-0,6 mm |
| 3 | Breadth / width of the work part | 1250 mm |
| 4 | Speed of profiling | 4-6 running meter/minute |
| 5 | Cutting accuracy | ± 5 mm |
| 6 | Type of decoiler | Stand electromechanical, completed by frequency converter |
| 7 | Lifting capacity of decoiler | 8 000 kg |
| 8 | Operation mode | Semiautomatic machine |
| 9 | Drive | Electromechanical, worm gear motor |
| 10 | Feeding | Chain |
| 11 | Maximum length of the sheets received by the receiving stacking table | 6000 mm |
| 12 | Minimum length of the sheets received by the receiving stacking table | 2000 mm |
| 13 | Control cabinet | Secures automatic work of the line after loading the material in the shape-forming mill; equipped with frequency converter |
| 14 | Maintenance personnel | 1-2 persons |
| 15 | Overall dimensions of the line | 20910х2200х1630 mm |
| 16 | Fixed power (capacity) of the line | 13 kW |
| 17 | Weight of the line | 10 000 kg |

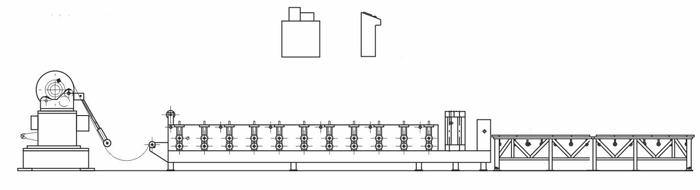

Scheme
