Combine line for finishing accessories production

User Rating:  / 0
PoorBest



The line is intended for production of quadrangular cap, valley gutter and snowbarrier from thin-sheet galvanized steel 0,5-0,6 mm of thickness with plastizol or pural coating. The excellence of final products is ensured with automatic control system and monitoring of master schedule exactitude.







Set:



  •  Decoiler – 1 pc
  •  Roll forming machine – 1 pc
  •  Cutting off device – 1 pc
  •  Receiving stacking table – 1 pc
  •  Control cabinet – 1 pc



Parameter



Parameter or size name Size or parametr
1 Treated material Galvanised and coated steel sheet, coatings such as plastizol or pural. Grade of steel sheet: S220GD+Z – S320GD+Z
2 Thickness of treated material 0,5-0.6 mm
3 Width of the workpiece In acordance with the drawing
4 Speed of profiling 15 running meter/minute
5 Cutting accuracy ± 1 mm/ 1000 mm
6 Type of decoiler Console, driving
7 Lifting capacity of decoiler 2000 kg
8 Operation mode Semiautomatic machine
9 Drive Electromechanical, worm gear motor
10 Feeding Chain
11 Control cabinet Secures automatic work of the line after loading the material in the shape-forming mill; equipped with frequency converter
12 Maintenance personnel 1-2 persons
13 Overall dimensions of the line 13000х1800х1200 mm
14 Fixed power (capacity) of the line 9,5 kW
15 Weight of the line 4500 kg

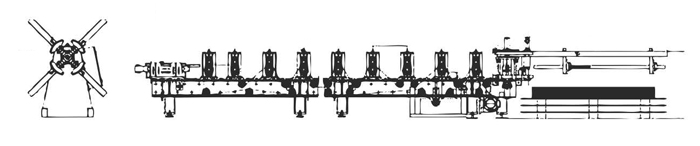

Scheme







Sketch

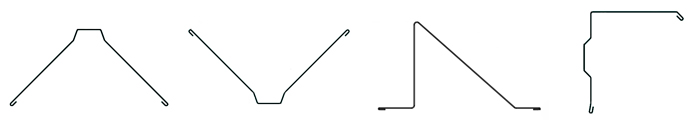

 esc dobornie element
